Tilt Indicator LR - Shipping Tilt Indicator
$145.00
Sale price
$145.00
Regular price
Unit price
$1.45 each

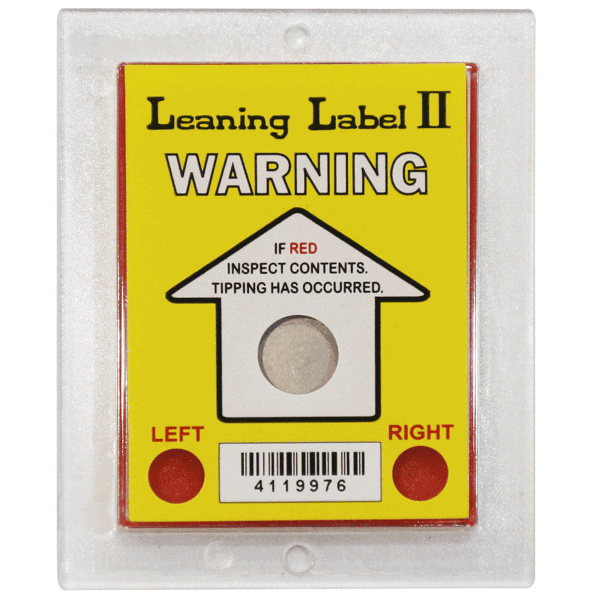

WAN-YO Leaning Label II provides a left/right tipping indication for upright shipments.
|
Specification
|
Details
|
|
Product Name
|
Leaning Label II
|
|
Dimensions
|
74 X 60 X 6.2 mm
|
|
Dimensions (Imperial)
|
2.91" X 2.36" X 0.24"
|
|
Activated Angle
|
Greater than 80°
|
|
Detecting Range
|
One Label: 180° detection / Two Labels: 360° detection
|
|
Tolerance
|
+/- 5°
|
|
Operating Humidity
|
5% to 99% RH
|
|
Operating Temperature
|
-40°C to 60°C / -40°F to 140°F |
|
Composition
|
Steel sheet and high-density polyethylene
|
|
Installation
|
Back adhesive or with screws and nails
|
|
Shelf Life
|
2 years
|

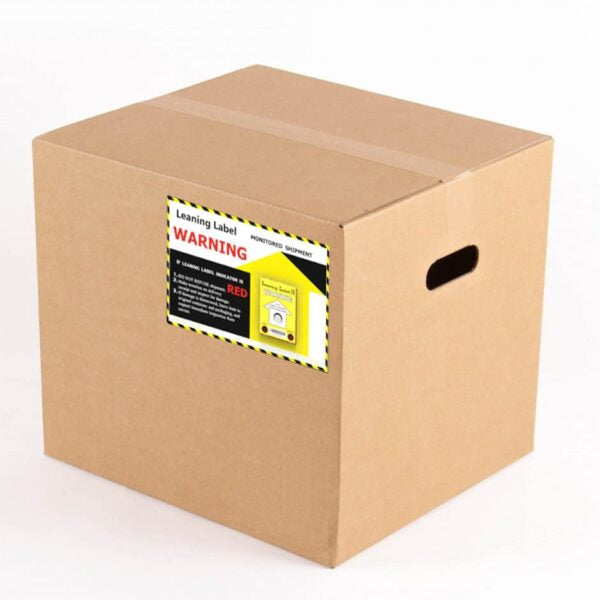

Install and interpret the selected model according to its instructions. For Leaning Label II and Plus, WAN-YO specifies one-label and two-label detection coverage; use the prescribed placement, including adjacent-side mounting where required. An indication prompts inspection and does not establish damage or responsibility.
