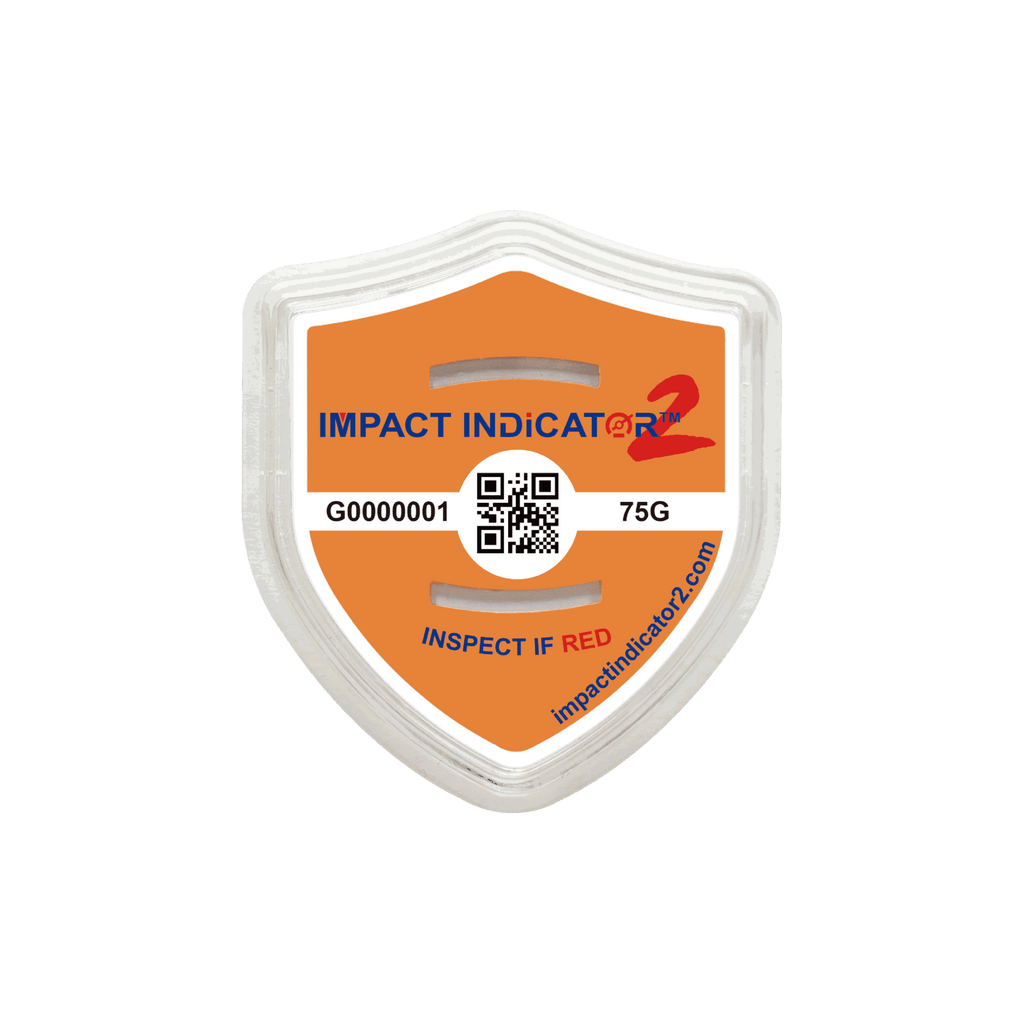

WAN-YO Impact Indicator 2 75G is a field-armable, serialized shipping shock indicator. Its nominal sensitivity is 75G. The visual indication changes when an impact meets the model’s response criteria; response depends on impact magnitude, duration and direction. Use the indication to prompt receiving inspection, not as proof of damage or carrier fault.
| Specification |
Value |
| Sensitivity |
75G |
| Impact Duration Range |
0.5–50 ms |
| Tolerance |
±15% at 20°C and 1 ATM |
| Operating Temp Range |
-25°C to 80°C / -13°F to 176°F |
| Shelf Life |
2 years when stored at 20°C and 1 ATM |
Comparable to ShockWatch 2 75G (51000K)
WAN-YO Impact Indicator 2 75G is comparable to legacy SpotSee ShockWatch 2 75G, part number 51000K, in nominal sensitivity and its field-armable visual shock-monitoring purpose.
| WAN-YO Shock Indicator |
SpotSee Comparison Model |
Legacy SpotSee Part Number |
Nominal Sensitivity |
| Impact Indicator 2 75G |
ShockWatch 2 75G |
51000K |
75G |
Both product families publish a 0.5–50 ms impact-duration range and a −25°C to 80°C operating range. Matching these specifications does not establish identical response or interchangeability. Review mounting, package requirements and application testing before substitution.
Request a Model Comparison and Volume Quote or Browse Impact Indicator 2 Sensitivities and Pack Sizes.
