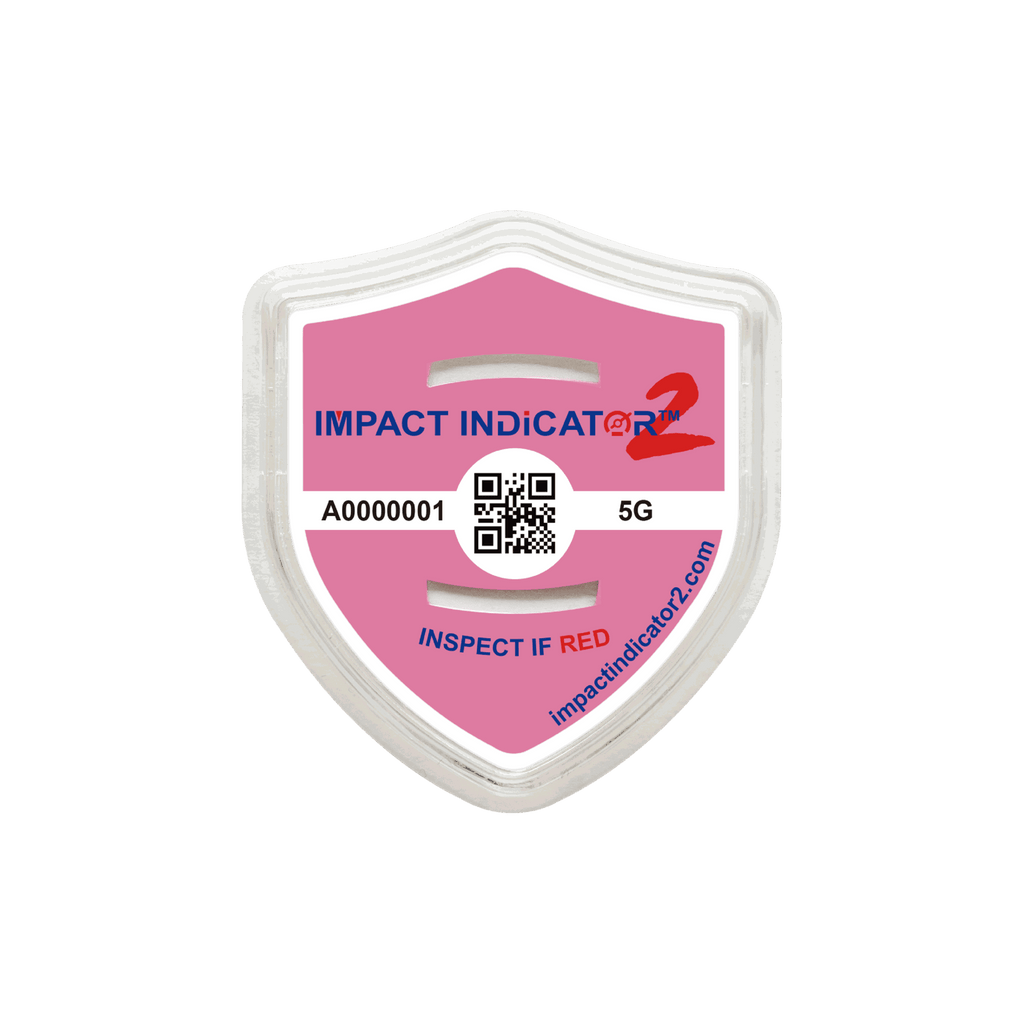

WAN-YO Impact Indicator 2 5G is a field-armable, serialized shipping shock indicator. Its nominal sensitivity is 5G. The visual indication changes when an impact meets the model’s response criteria; response depends on impact magnitude, duration and direction. Use the indication to prompt receiving inspection, not as proof of damage or carrier fault.
| Specification |
Value |
| Sensitivity |
5G |
| Impact Duration Range |
0.5–50 ms |
| Tolerance |
±15% at 20°C and 1 ATM |
| Operating Temp Range |
-25°C to 80°C / -13°F to 176°F |
| Shelf Life |
2 years when stored at 20°C and 1 ATM |
Impact Indicator 2 vs ShockWatch 2
Compare WAN-YO Impact Indicator 2 with the legacy SpotSee ShockWatch 2 models below by nominal sensitivity and field-armable visual shock-monitoring purpose.
| WAN-YO model sold here |
SpotSee comparison model |
Legacy SpotSee part number |
Nominal sensitivity |
| Impact Indicator 2 5G |
ShockWatch 2 5G |
45000K |
5G |
| Impact Indicator 2 10G |
ShockWatch 2 10G |
46000K |
10G |
| Impact Indicator 2 15G |
ShockWatch 2 15G |
47000K |
15G |
| Impact Indicator 2 25G |
ShockWatch 2 25G |
48000K |
25G |
| Impact Indicator 2 37G |
ShockWatch 2 37G |
49000K |
37G |
| Impact Indicator 2 50G |
ShockWatch 2 50G |
50000K |
50G |
| Impact Indicator 2 75G |
ShockWatch 2 75G |
51000K |
75G |
Both product families publish a 0.5–50 ms impact-duration range and a −25°C to 80°C operating range. Matching these specifications does not establish identical response or interchangeability. Review mounting, package requirements and application testing before substitution.
The part numbers above identify legacy non-QR ShockWatch 2 products.
Request a Model Comparison and Volume Quote or Browse Impact Indicator 2 Sensitivities and Pack Sizes.
