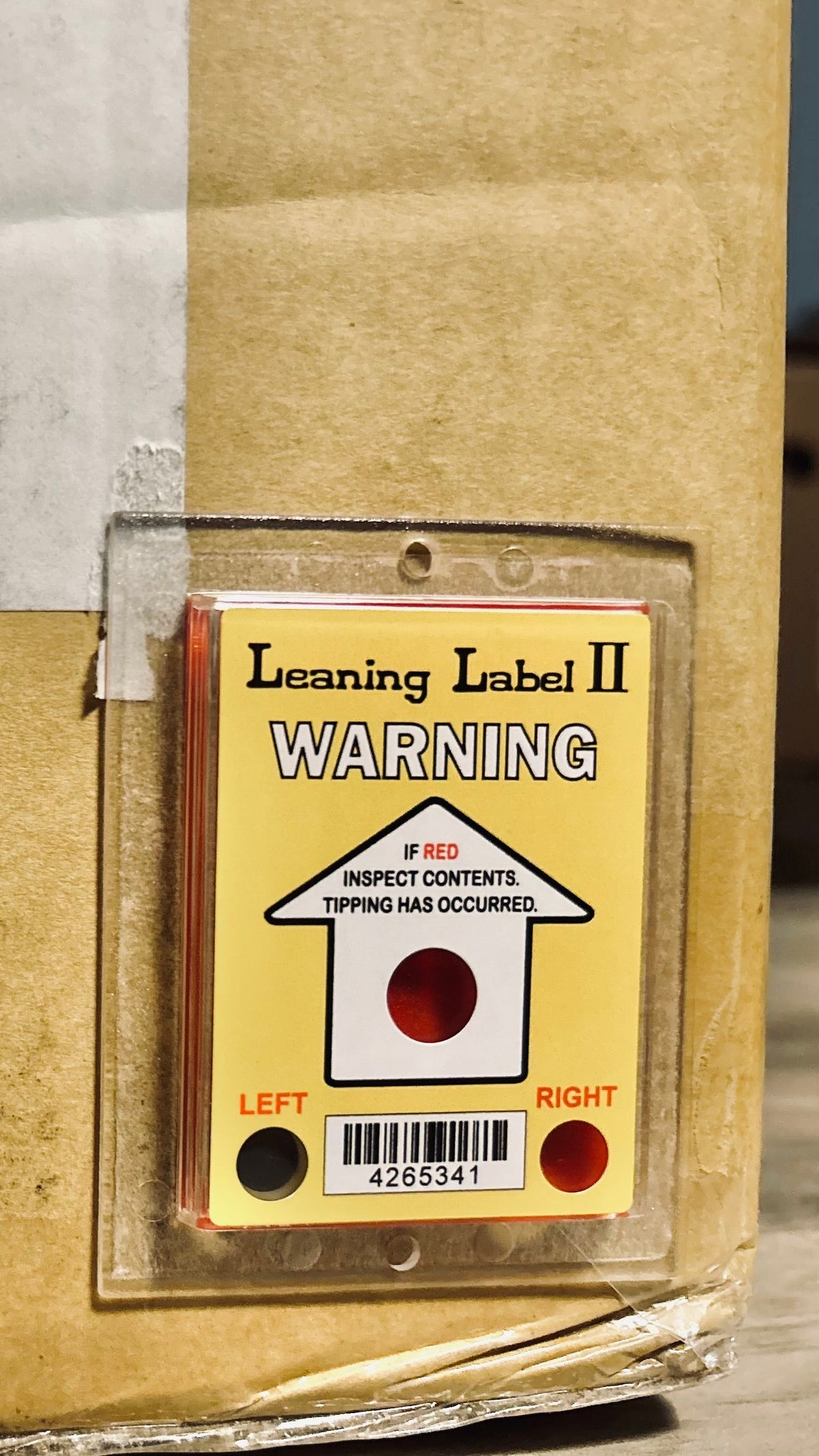

An upright-only shipment may move through a factory, a third-party logistics warehouse, a delivery crew, and an installation team before anyone puts it into service. Each transfer creates a practical question: what condition was the shipment in when responsibility changed hands?
A tilt indicator can support that conversation, but only if the people handling the shipment know where to look and what to record. The goal is a consistent handoff record—not a promise that a label can reconstruct the whole journey.
Map the handoffs that matter
Start with the equipment manufacturer’s handling instructions. Identify when the product must stay upright, what preparation is required for movement, and who is authorized to approve an exception. Do not assume that every cabinet, appliance, or instrument has the same orientation limits.
Then list the actual transfers: packing completion, carrier collection, warehouse receipt, warehouse release, site delivery, and installation acceptance. Ask whether the packaging stays intact at each stage. An indicator on a discarded crate cannot monitor the unpacked equipment’s final move.
Choose the information you need
Some applications need a simple indication that a defined orientation limit was exceeded. Others need information about direction or multiple angle levels. These capabilities are model-specific; consult the WAN-YO tilt indicator comparison and the exact device instructions.
ThermLogix offers tilt monitoring options, including the Tilt Indicator LR and Tilt Indicator Plus. Select by the required function rather than assuming one model is interchangeable with another. See our tilt indicator selection guide for the questions to ask.
Create one handoff record everyone can use
A useful record should take less effort to complete than a later investigation. Use a consistent form with:
- Shipment and equipment identifiers.
- Location, date, time, and receiving person.
- Indicator model, serial number where available, and observed status.
- A close-up photograph plus a photograph showing placement on the shipment.
- Packaging condition and any planned unpacking or repacking.
- The action taken and the person responsible for follow-up.
Send the procedure to the 3PL and installer before the first monitored shipment. A receiving crew should not have to infer the meaning of an unfamiliar display while a truck waits at the dock.
Plan for unpacking and authorized movement
Define where each monitoring interval begins and ends. If a crate will be removed at a warehouse, document the final reading before removal. If a new monitoring device is appropriate for the next leg, record its identifier and starting condition separately.
Never replace a triggered device simply to make a shipment appear acceptable. Preserve the original result and identify any replacement as a new monitoring interval. Likewise, if the manufacturer permits a controlled tilt during installation, document that procedure rather than silently changing the monitoring expectation.
Agree on an exception workflow
A triggered, missing, or unreadable indicator should lead to a named reviewer and a defined inspection—not a debate over the loading dock. Tell each partner whom to contact, what photographs are needed, and whether equipment must remain out of service pending review.
The indicator does not establish product damage or identify the responsible party by itself. Successive observations can narrow the interval requiring investigation, but they do not provide an exact event timestamp.
Use the results to improve handling
Review where records go missing and where exceptions cluster. It may be the packaging-removal step, a cramped site entrance, or an undocumented transfer to a local crew. Those patterns suggest questions to investigate, not conclusions to assume.
Where the package design or shipping method needs evaluation, consult ISTA’s transport-testing guidance. Monitoring and package design should support the same handling plan.
Frequently asked questions
Can one label monitor the whole shipment?
Only while it remains correctly installed on the item or packaging being monitored, within its operating specifications. Unpacking and repacking require an explicit plan.
Do tilt indicators also measure impact?
Do not assume so. Orientation and shock are different monitoring needs. Add an appropriate impact device when the risk assessment calls for it.
Make the next handoff easier to verify
Request a tilt monitoring recommendation from ThermLogix. Share the equipment instructions, packaging arrangement, transfer points, and whether you need direction or angle information. We can help you narrow the product options before you standardize the workflow.
