How Much Force Can Trigger a Shock or Impact Indicator?

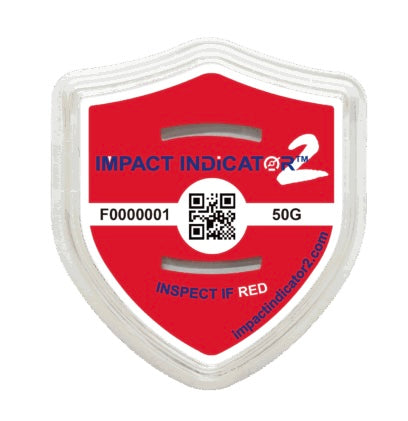

Red WAN-YO Impact Indicator 2 marked 50G.

How Much Force Can Trigger Shock or Impact Indicator?

An impact indicator provides a visual signal when an event meets the selected model’s response criteria. Nominal G rating is only part of that specification: impact duration, direction, mounting and packaging affect the result. Activation prompts inspection; it does not establish product damage, event timing or carrier responsibility.

The examples below concern the WAN-YO Impact Label family (25G, 37G, 50G, 75G and 100G), not Impact Indicator 2. Demonstration drop heights depend on the test object, mounting, packaging and impact surface. The full setup and conditions have not been established here, so these examples must not be used as a general drop-height-to-G conversion or product acceptance limit.

Shock Indicator Sticker: Activation Height Table

Drop Height For Activation

The embedded demonstration illustrates the response of the pictured Impact Label models in its test setup. It does not establish activation heights for another package or indicator family.
